Your current location： HOME> PRODUCTS> Hydrogen Generator

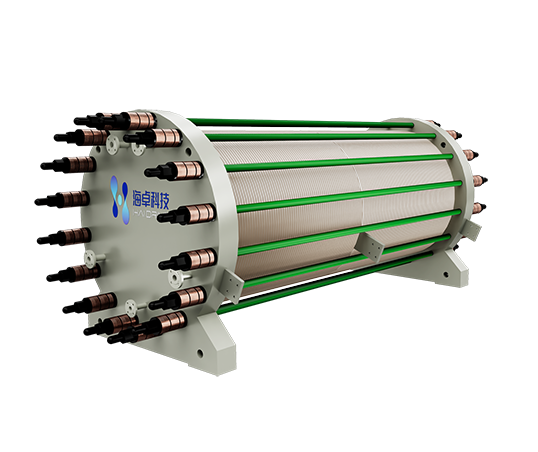

  • Alkaline Electrolyzer
    Suitable for petrochemical, chemical, electric power, transportation,etc.
    High Efficiency
    Non-pollution
    Low Noise
    Cost-Effective
  • Prduct Advantages
  • Product Parameters


  • Similar structure to PEM: combining high performance from PEM electrolyzer and economy from alkaline electrolyzer
  • Porous nickel electrode: increasing current density by 1000A/㎡
  • Zero-gap membrane-electrode assembly: reducing contact resistance and decreasing power consumption
  • New composite membrane: adopting a new composite membrane to replace PPS or asbestos membrane



Category

HEC-A500/HEC-A1000

Rated Production (h2)(Nm3/h)

500/1000

Operating Pressure (Mpa)

1.6

Load Range (%)

30~100

Purity (Before Purification) (%)

≥99.8

Purity (After Purification) (%)

≥99.999

The Dew Point of Hydrogen (℃)

≤ -65

DC Power Consumption (kWh/Nm³H2)

≤4.5

Start Up Time

30 min warm / < 2h cold

Rated Power (MW) 2.5
